6" Spiral Cutterhead Benchtop Jointer (Cast Iron Tables) - CUTECH 40160HI

The favorite 6" Cutech jointer now available with cast iron tables. The small but powerful benchtop tool to handle any small project.  The 6" spiral cutterhead achieves a fine finish whether you are working with soft pine or hard maple. This model shares the same large table adjustment dial and easy to read Depth of Cut Indicator as the larger 8" jointer model.

Spiral Cutterhead

Cutterhead with 6 rows that holds 12 staggered inserts for a smooth finish.

Cast Iron Tables

Durable cast iron tables for a consistent quality finish every time. Surface is ground smooth and precise to a flatness of 0.15mm in tolerance.  The increased hardness of cast iron provides a strong support while providing a more scratch resistant finish.

Depth of Cut

The easy to read depth of cut scale with red pointer correlates with how low the infeed table is lowered to see the amount of material to be taken off.

Specifications

Motor

• Voltage: 120V

• Current: 10A

• Frequency: 60Hz

• Speed: 19000 ± 10% RPM


Cutterhead

• Type: Spiral

• Diameter: 2”

• Cutterhead Speed: 11000 RPM

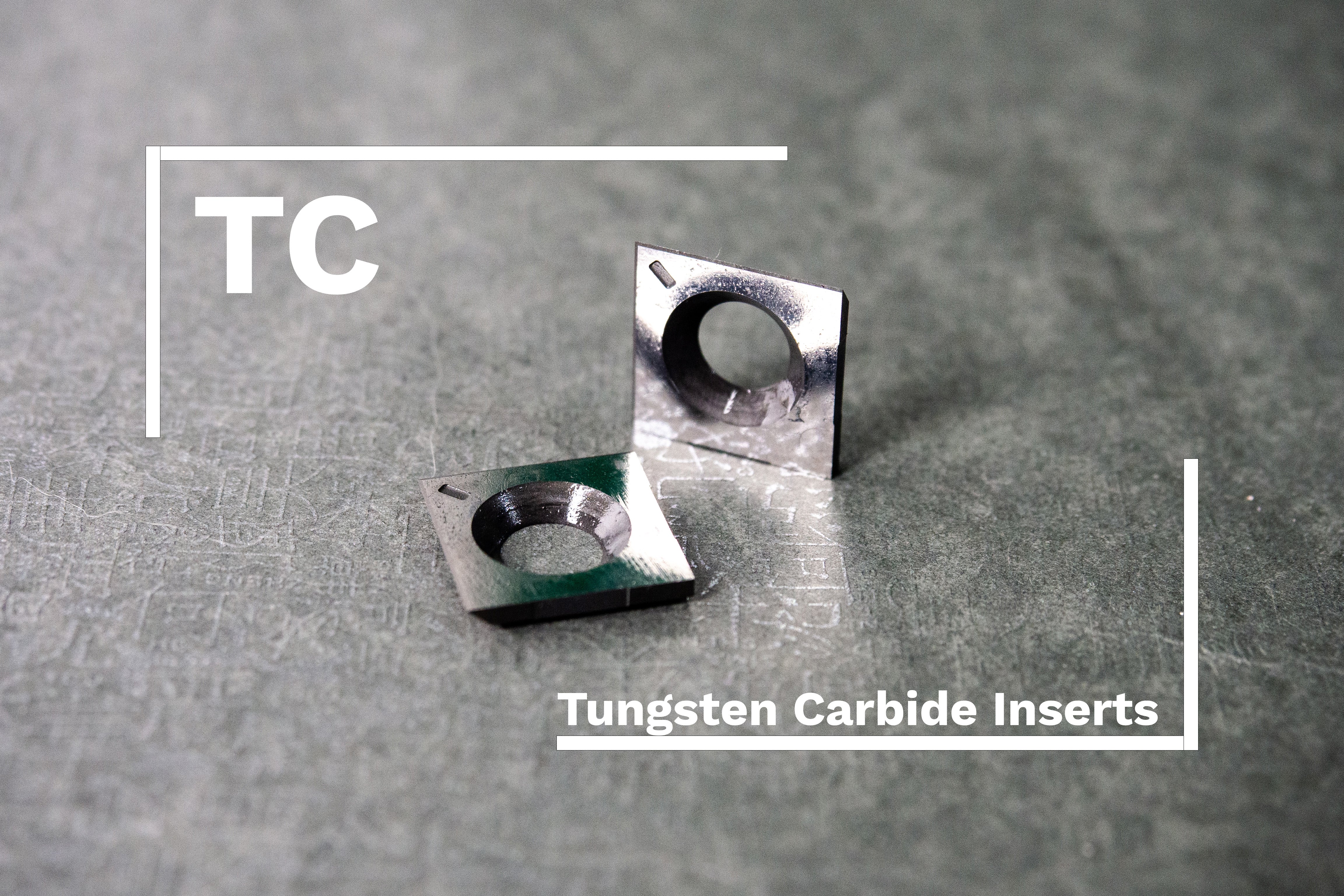

• Blades: 12 Two-sided Tungsten Carbide Inserts

• Max Depth of Cut: ⅛"

• Max Cutting Width: 6”


Features

• Cast Iron Tables
• Depth of Cut Pointer


Dimensions

• Overall Size: 30" x 17 ¾" x 13 ¼”

• Table: 30" x 6¼"

• Fence Size: 19⅝" x 4⅜”

• Dust Port Diameter: 2½”
• Net Weight: 51.6 lb


Manual

40160H User Manual
