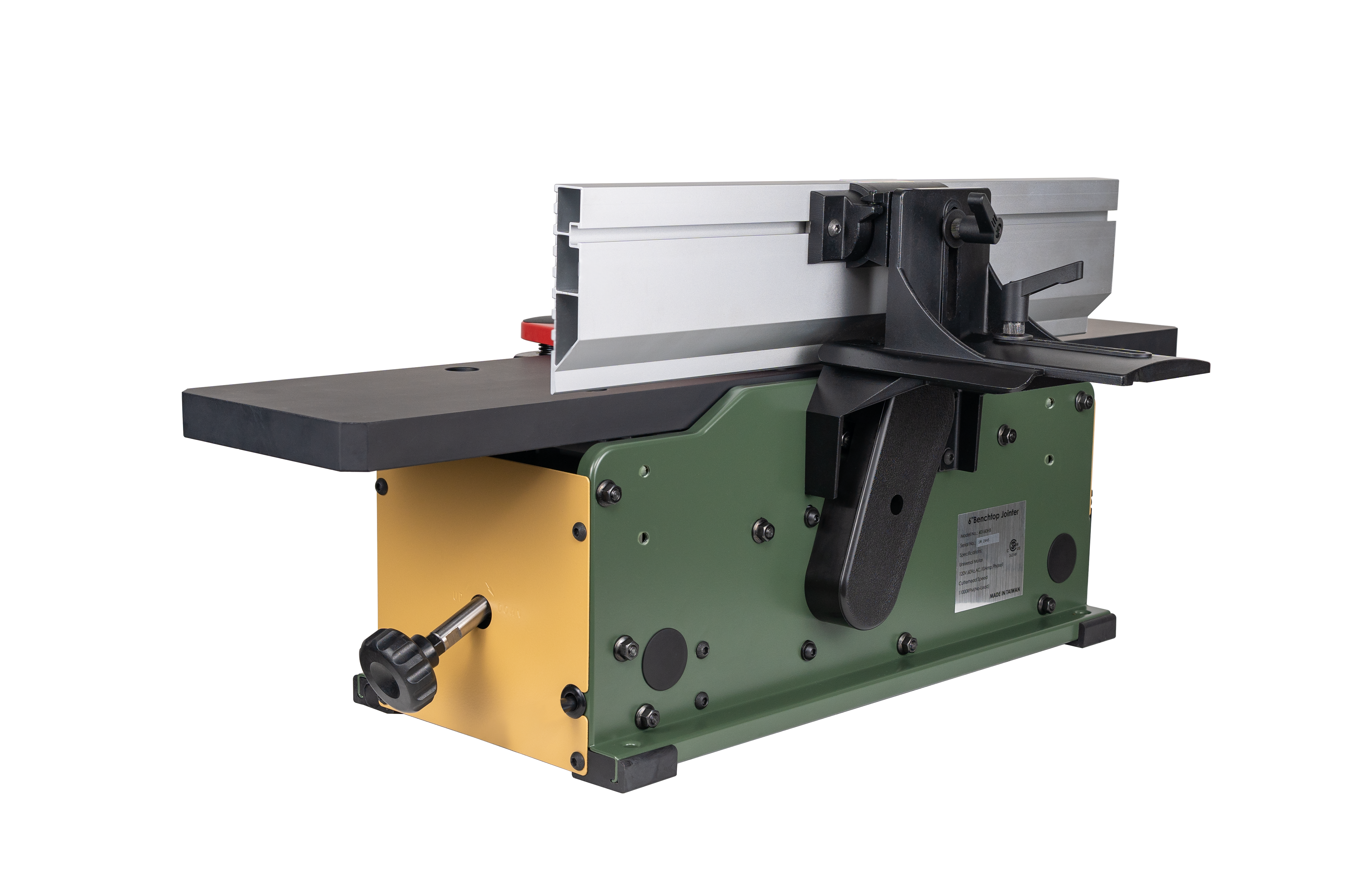

6 inch Benchtop Jointer (Black Table) - CUTECH 40160HB

Name: 6 inch Benchtop Jointer (Black Table) - CUTECH 40160HB
Brand: CUTECH
SKU: 40160HCB_24
Price: 319.99 USD
Availability: InStock
Rating: 4.71 (34 reviews)

$319.99

Quantity:

62180453-e4a8-4cfd-800b-1cc674c232b1.__CR87,0,1746,1080_PT0_SX970_V1___.jpeg__PID:98eeb87d-10a6-4c60-baf6-b9417d63da84

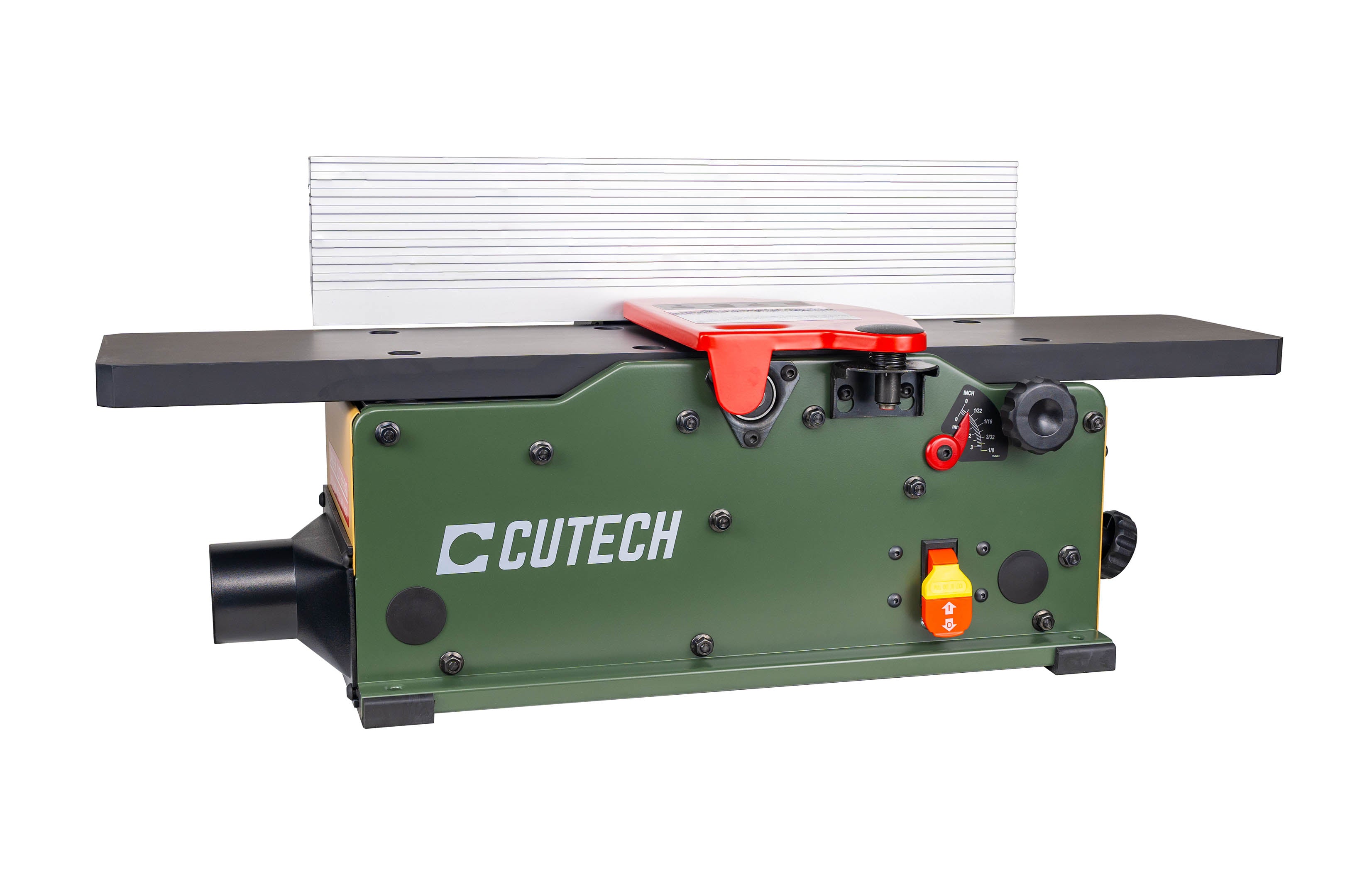

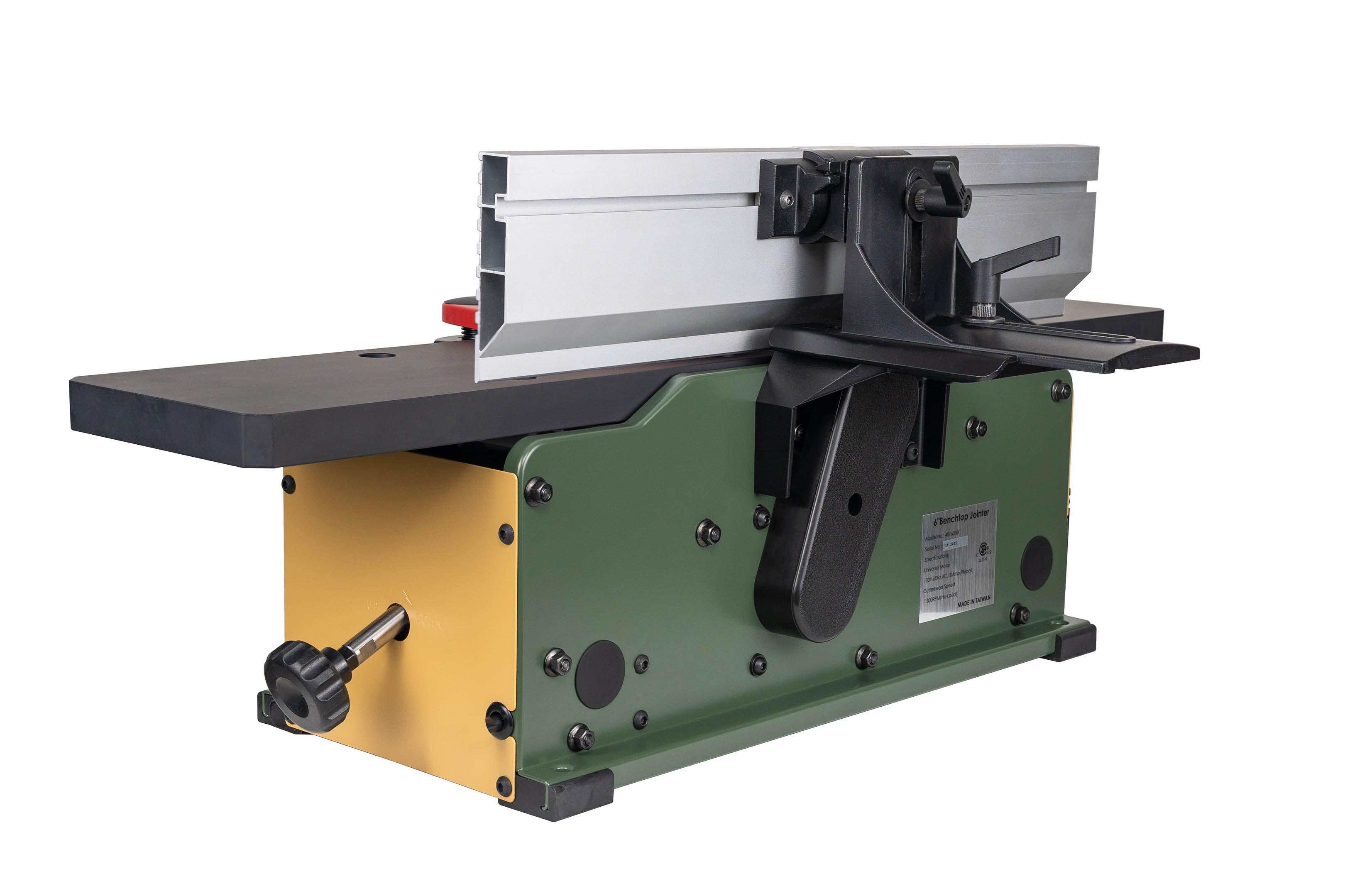

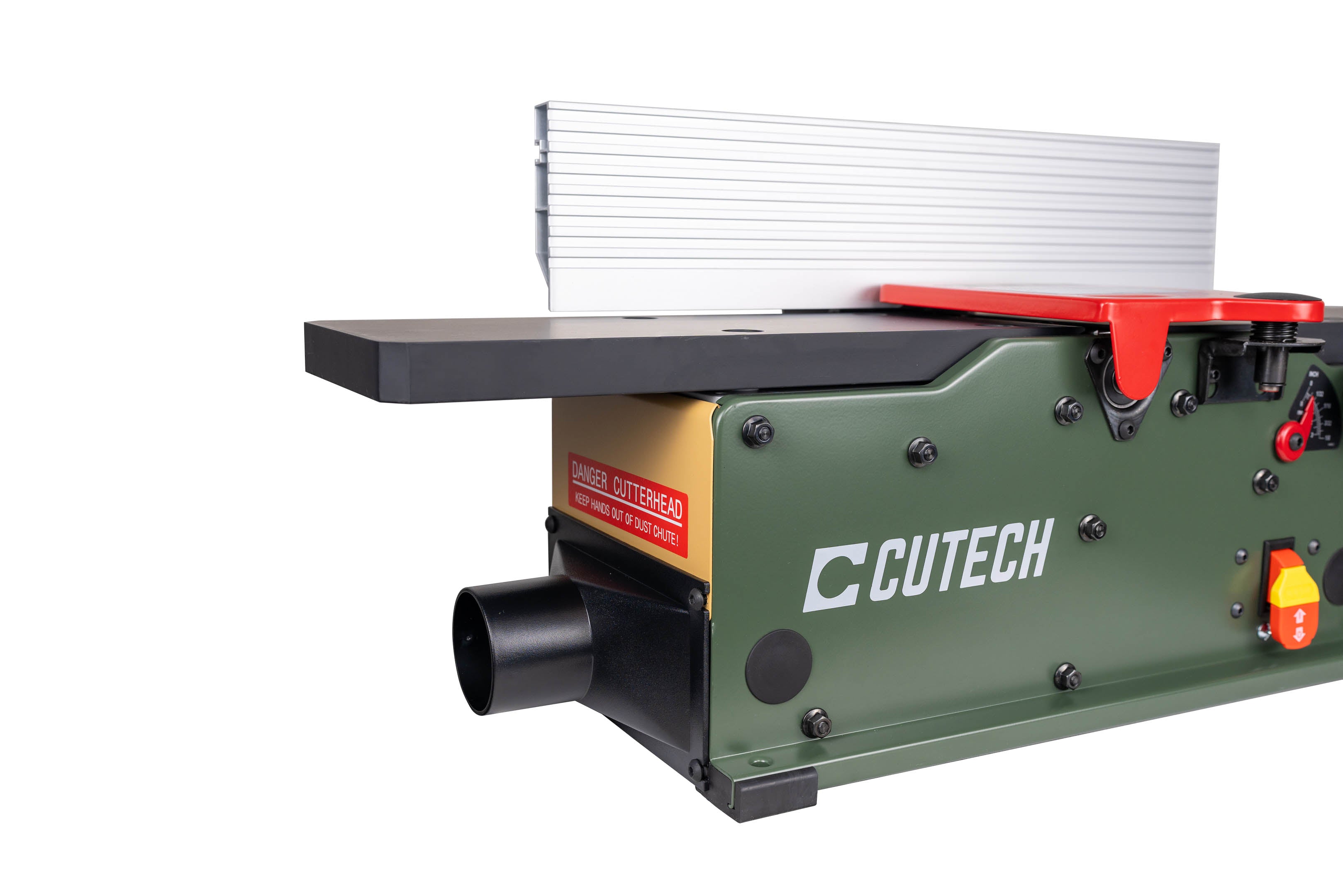

Ultra-Portable 6" Cutech Jointer – Compact Without Compromise

The ultra-portable 6" Cutech jointer packs all the essential features you'd expect from a larger model. Weighing just 40 lbs, it’s easy to transport to any job site. With a total bed length of 30", it provides solid support for small projects with ease. The 6" spiral cutterhead features 12 two-sided Tungsten Carbide (TC) inserts. These inserts are aligned with precision to deliver smooth, accurate cuts and last up to 50% longer than standard HSS ones. Just like our larger models, this jointer uses a dual guide-post system that ensures straight, consistent cuts at any cutting depth. Reinforced with additional support rods, the jointer maintains stability and strength when working with heavier workpieces. The upgraded, teflon-coated infeed and outfeed tables offer a non-corrosive, non-reactive surface that protects your workpieces. This protective layer helps resist scratches and improves surface hardness to 6H, extending the life of your tables.

FEATURES

Spiral Cutterhead - Cutterhead with 6 rows that holds 16 staggered inserts for a smooth finish. The design of the cutterhead along with the use of in-house made inserts make cuts with the lowest amp draw compared to others.
Two-sided Inserts - Two-sided inserts sit in perfect alignment to the spiral cutterhead. Non-cutting edge designed to prevent insert from skewing while planing. The precision is superior to 4-sided inserts.
Depth Of Cut Pointer - Clear and accurate scale and pointer for a precise measured cut every time.
Adjustable Fence - Adjustable 19-5/8" fence with quick stops at 90° and 135°.
6H Teflon Coating Table Surface - This layer of coating reduces table scratches, increases the hardness of the aluminum table to 6H, thus extending the life of the tables.

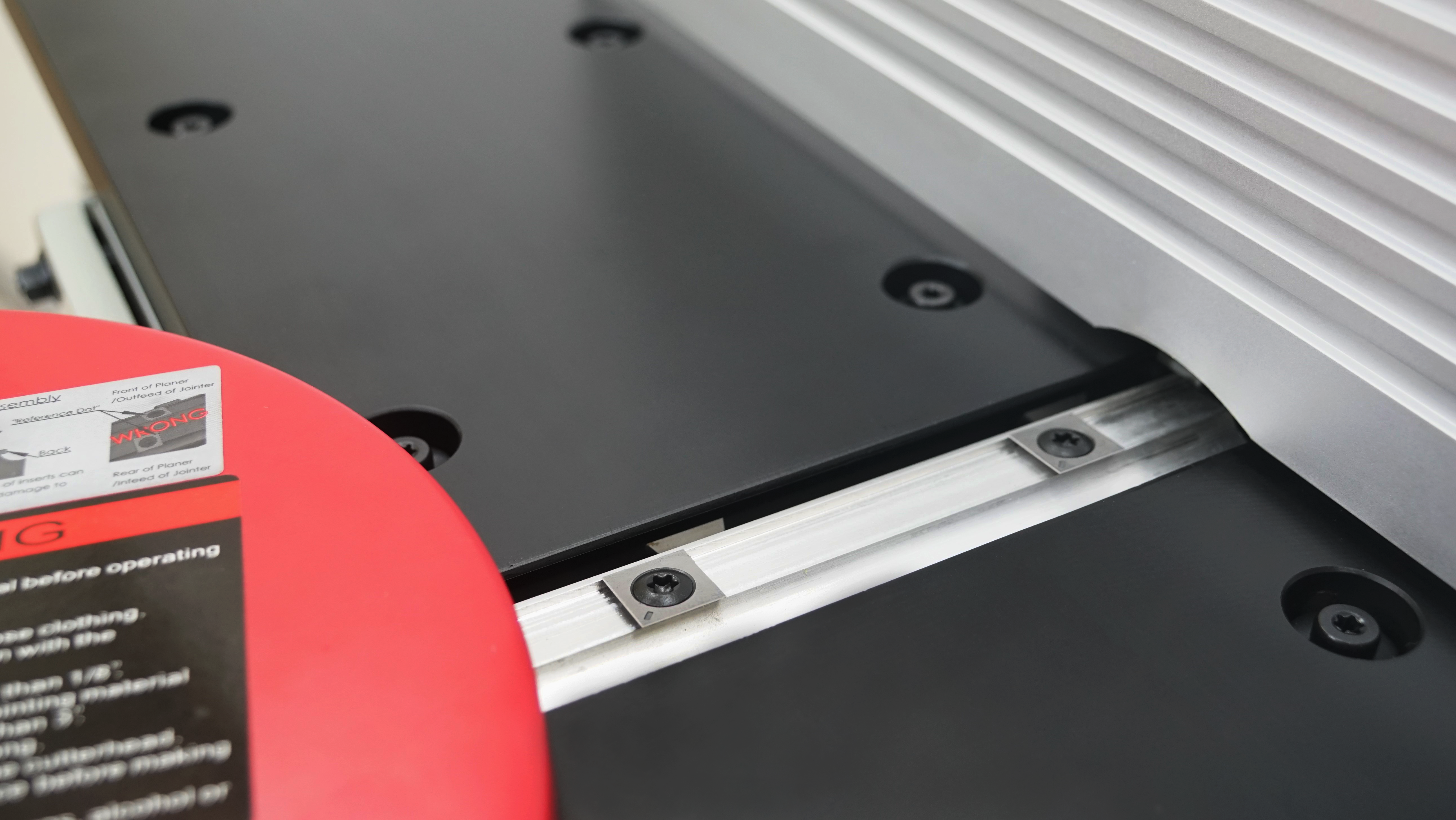

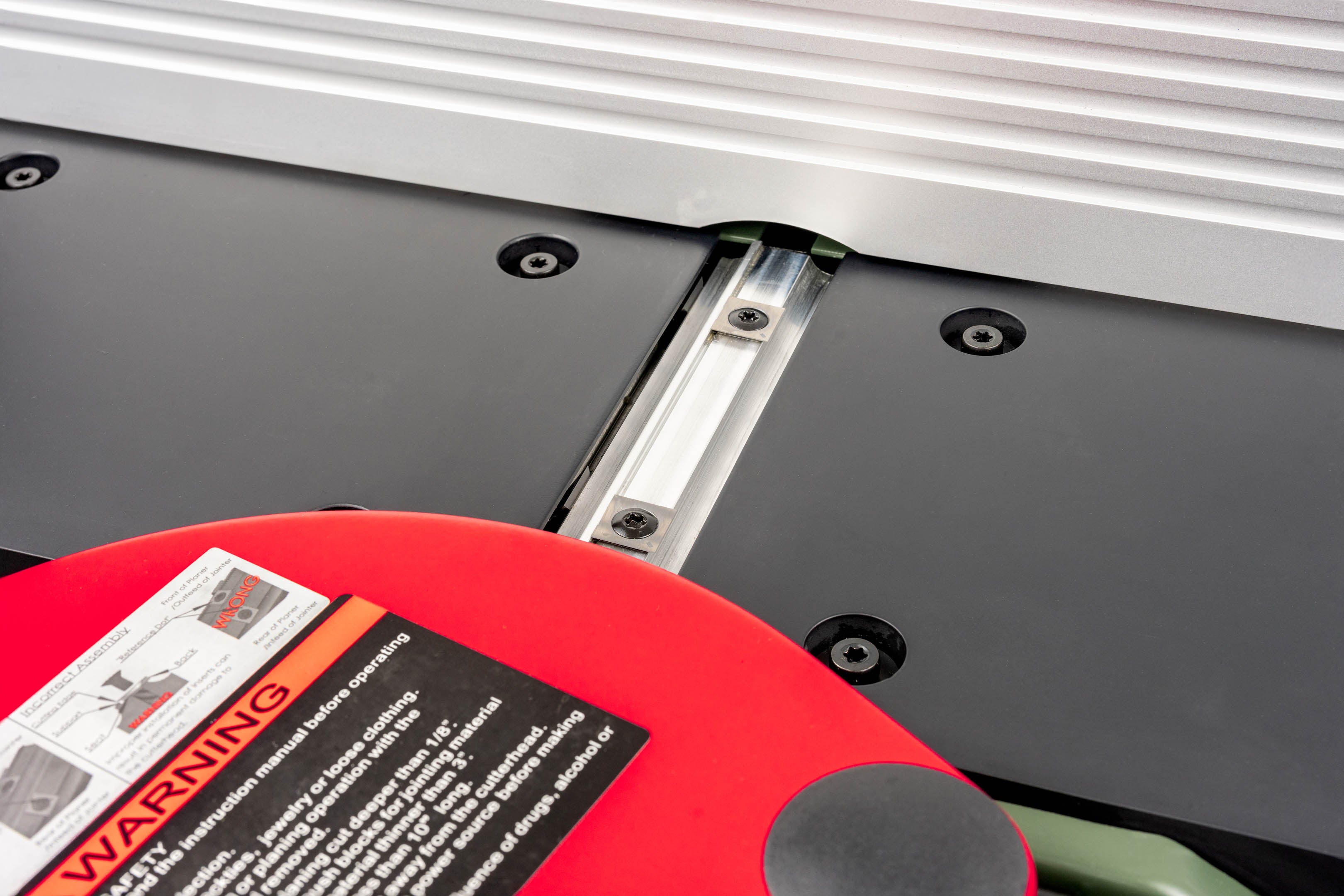

CUTECH Spiral Cutterhead

Cutterhead with 6 rows that holds 12 staggered inserts for a smooth finish.

The design of the cutterhead along with the use of in-house made inserts make cuts with the lowest amp draw compared to others.

Two-sided Inserts

Two-sided inserts sit in perfect alignment to the spiral cutterhead.

Non-cutting edge designed to prevent insert from skewing while planing.

The precision is superior to 4-sided inserts.

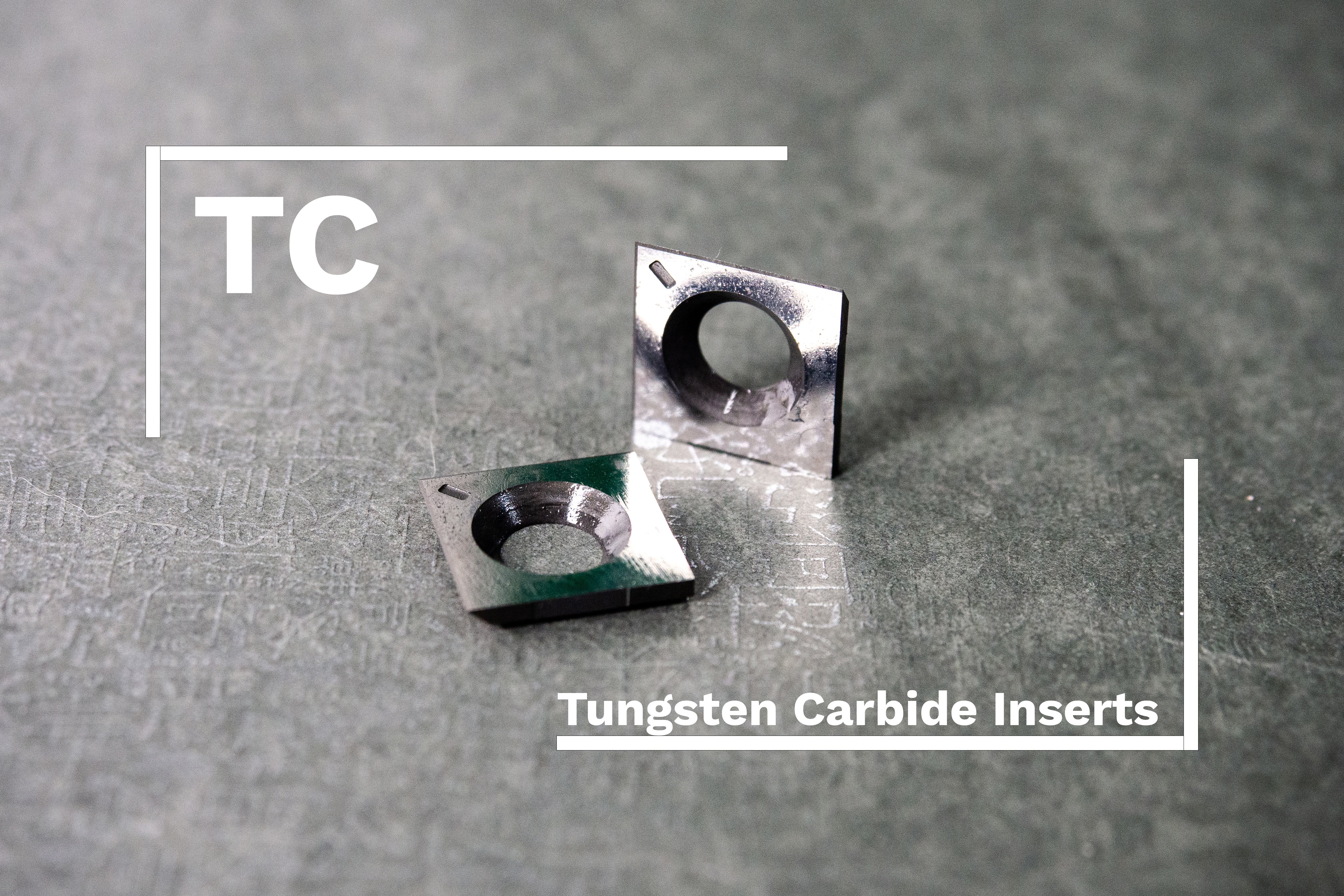

Tungsten Carbide Inserts

Our inserts are engineered in-house to a 0.0007" (0.02mm) tolerance. This sub-thousandth precision delivers a glass-smooth finish right off the cutterhead, eliminating line-tracking.

Built from high-grade Tungsten Carbide, these inserts outlast standard HSS blades by 50%, keeping your edge sharper for longer.

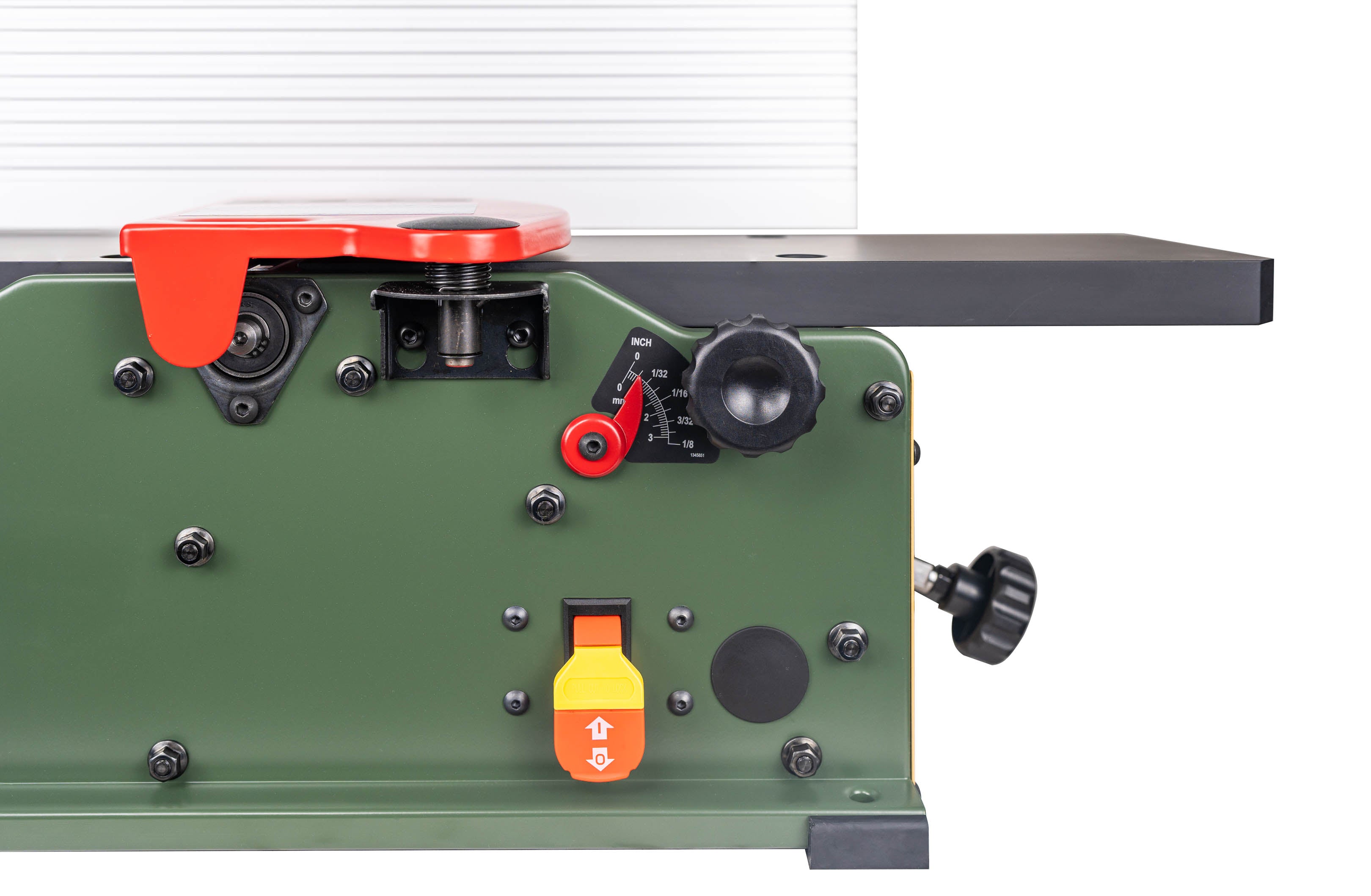

Depth of Cut Pointer

Clear and accurate scale and pointer for a precise measured cut every time.

5ea46b03-656c-4c7f-96f0-232a8d8a9a4b.__CR0,0,3375,3375_PT0_SX220_V1___.jpeg__PID:88906932-6e0d-4d42-873e-1c53adfa528b

Elevation Control

Say goodbye to table inconsistencies with the additional guide post.

Parallel tables translate to straight cuts at any different depth.

4d56a543-8c1d-4461-84b3-8a7a31433179.__CR0,0,1080,1080_PT0_SX220_V1___.jpeg__PID:f9170ea2-f037-46b4-ba16-1e174d2dd888

Additional Support Rod System

Additional support rod system maintaining a strong upright frame.

Sustaining support for heavy-duty work pieces.

3b2ea774-e366-4504-8c28-a168d0da2d45.__CR0,0,1080,1080_PT0_SX220_V1___.jpeg__PID:12ccf8e5-4c65-47d2-8199-3bf7c38e2df7

Upgraded teflon-Coated Tables With 6H Hardness

Durable teflon coating resists corrosion and scratches, while increasing surface hardness to 6H — extending the life of your infeed and outfeed tables.

53a94720-aa40-42b6-a50e-1f2aae57a5fd.__CR0,0,1080,1080_PT0_SX300_V1___.jpeg__PID:44ab1f80-0e36-4f93-b394-7831f03996e2

Dimensions

19-5/8” Aluminum Fence.

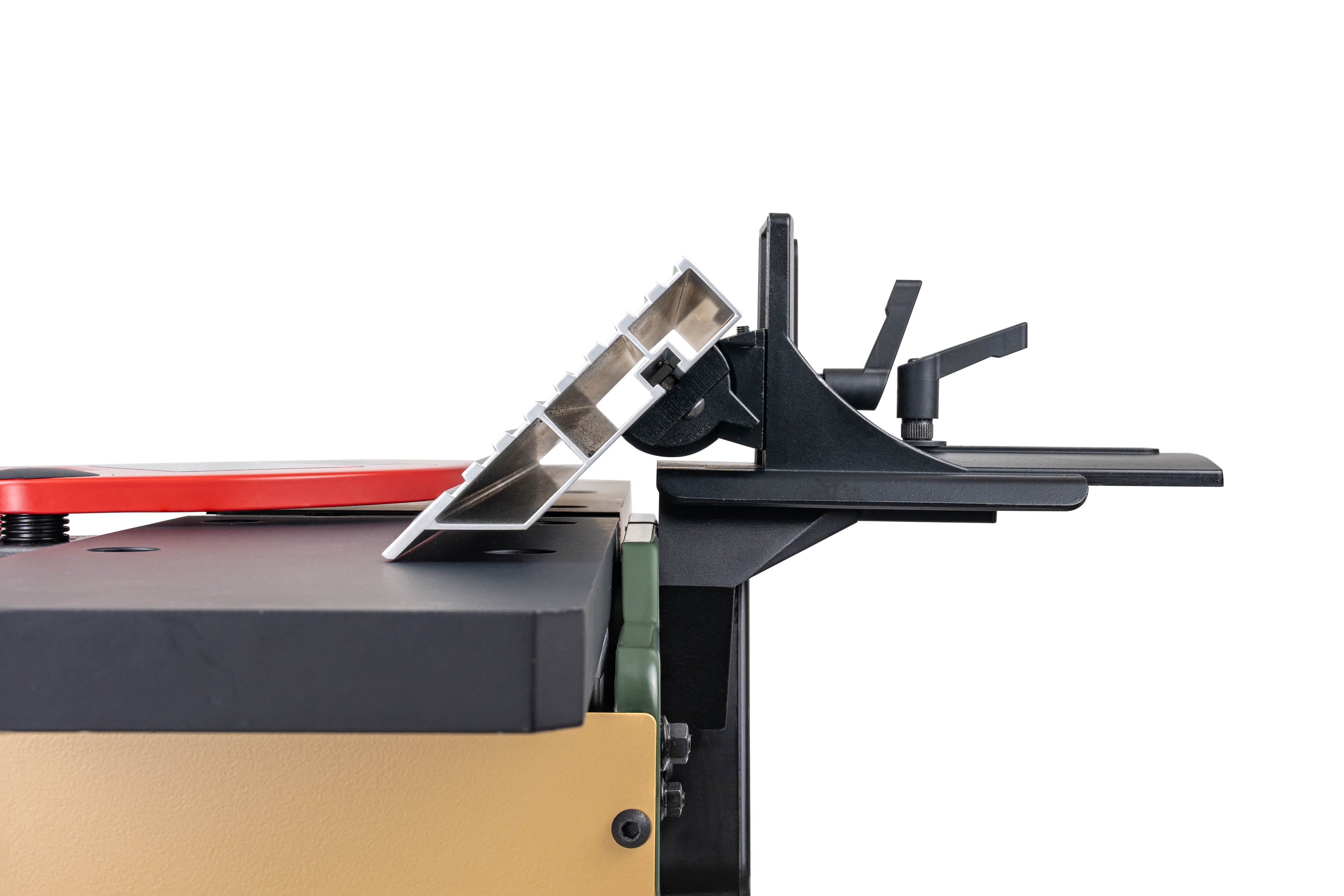

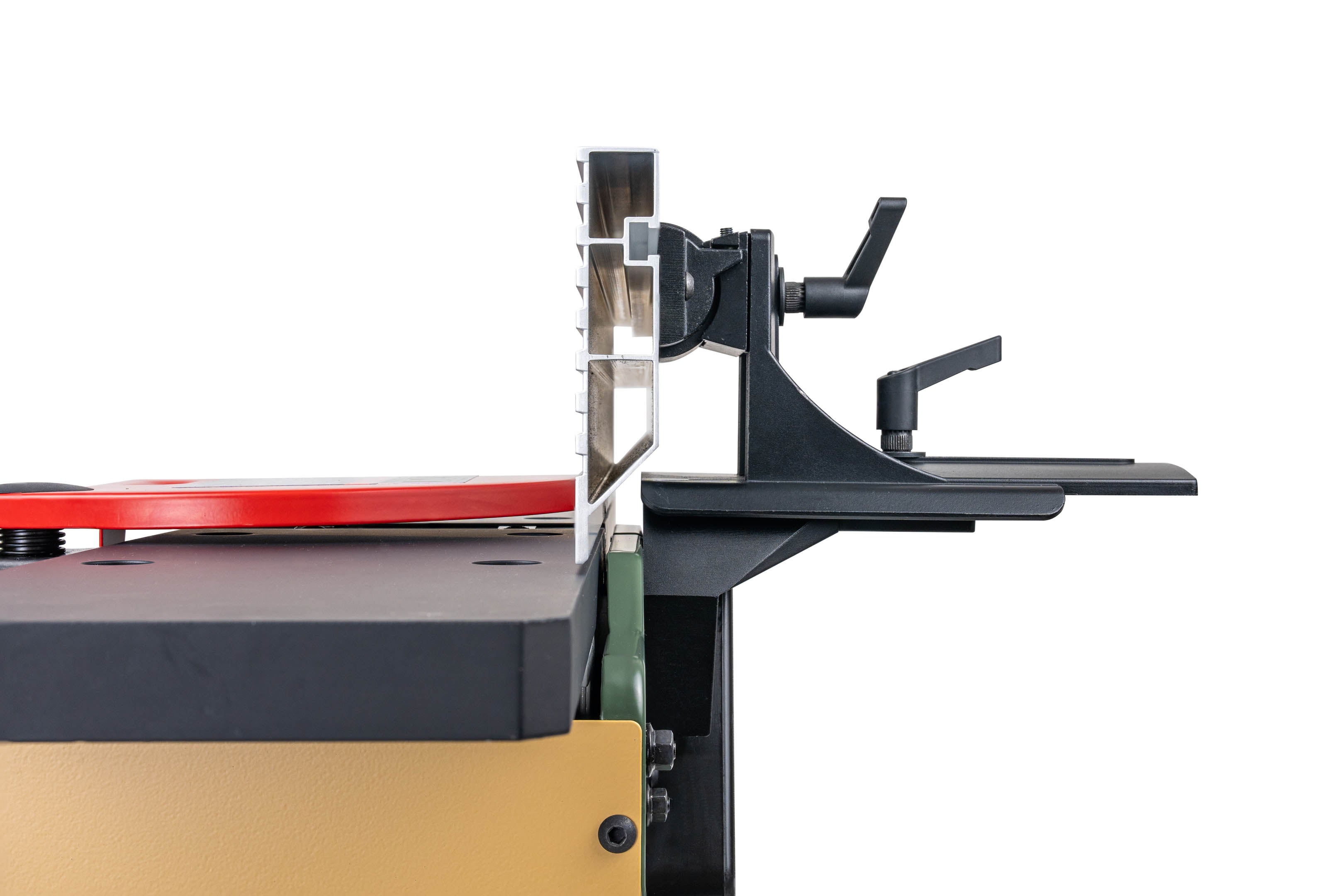

Adjustable Fence

Adjustable 24” fence with quick stops at 90° and 135°.

Dust Port

2-1/2” diameter dust port

Product Patents

LEVEL ADJUSTING DEVICE FOR WORKTABLE OF JOINTER/PLANER MACHINE

(US 8,851,462 C1)

FENCE ENHANCEMENT BRACKETS

(Patented In Taiwan)

Motor

Voltage: 120V
Current: 10A
Frequency: 60Hz
Speed: 19000 ± 10% RPM

Cutterhead

Type: Spiral
Diameter: 2”
Cutterhead Speed: 11000 RPM
Blades: 12 Two-sided Tungsten Carbide Inserts
Max Depth of Cut: ⅛"
Max Cutting Width: 6”

Features

Spiral Cutterhead
Two-sided Inserts
Adjustable Fence
Redesigned Elevation Control
Depth of Cut Pointer
Additional Support Rod System
6H Teflon Coating Table Surface

Dimensions

Overall Size: 30" x 17¾" x 13¼”
Table: 30" x 6¼”
Fence Size: 19⅝" x 4⅜”
Dust Port Diameter: 2½”
Net Weight: 37.30 lb

40160HB USER MANUAL3 YEAR LIMITED WARRANTY

6" jointerr

Tool was set up perfectly and ready to go right out of the box. I used it today and works great!

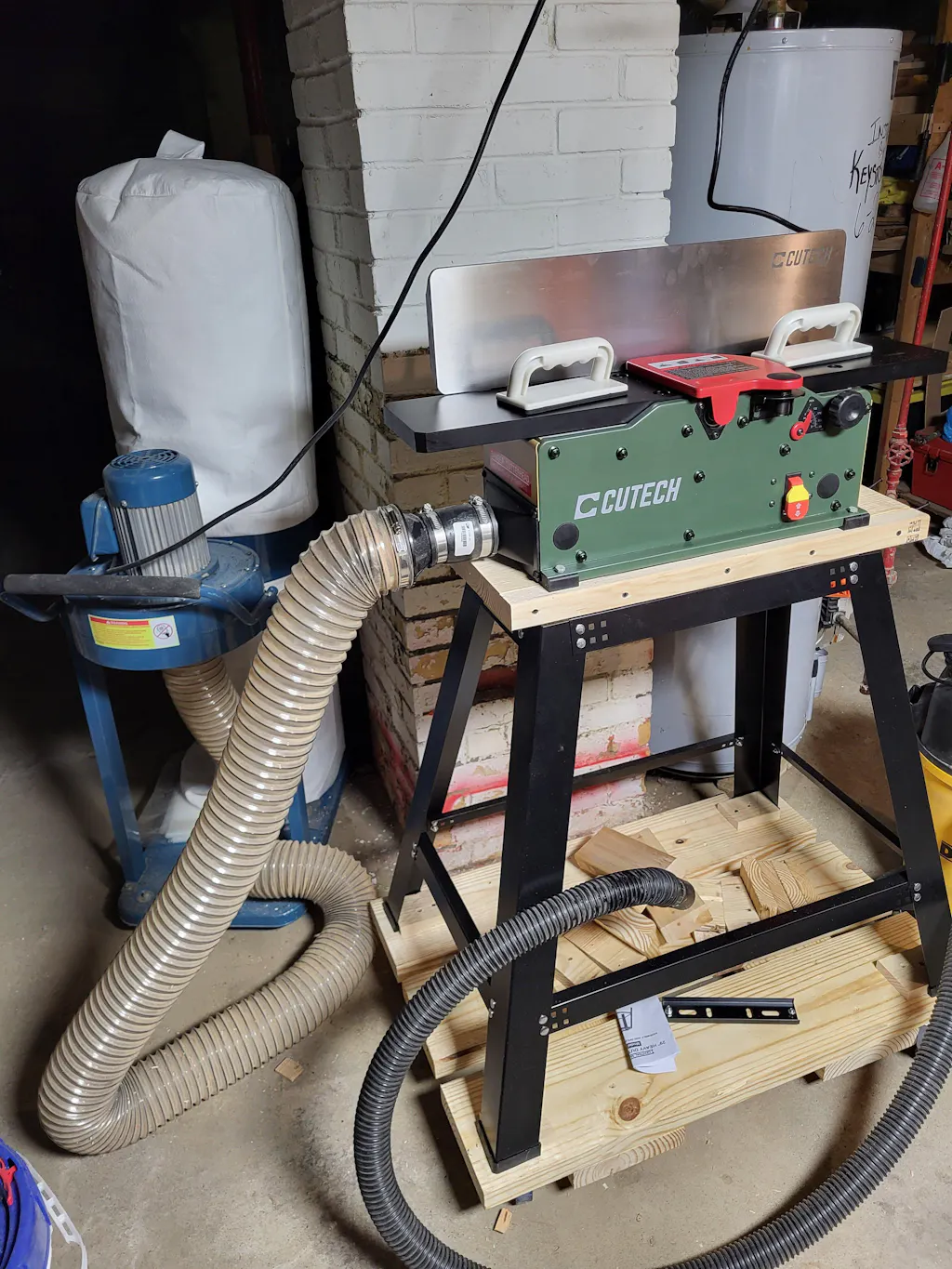

Just got my new jointer!

My new 6 inch jointer just arrived today. I also ordered the cast iron fence with it. I'm glad I did and love how solid it feels compared to the aluminum. it also makes the whole unit more stable because of the extra weight. Set up was easy enough for me. I work as a waterjet machinist and know a few tricks to setting up tools. I only ran a piece of pine through it to check alignment, and it's dead on. I'll get a lot of use out of it. Betty in customer support was awesome to deal with. I had a shipping issue due to my schedule and she made it so that it worked out great! Even called me to let me know UPS did not pick up one day and there would be a delay. I appreciate that kind of customer service! Can't wait to start running actual projects through it! It's quieter than I expected which is good since I have neighbors in the apartment in front of me. It's the perfect size for my small space and the stand I made to use it on rolls.

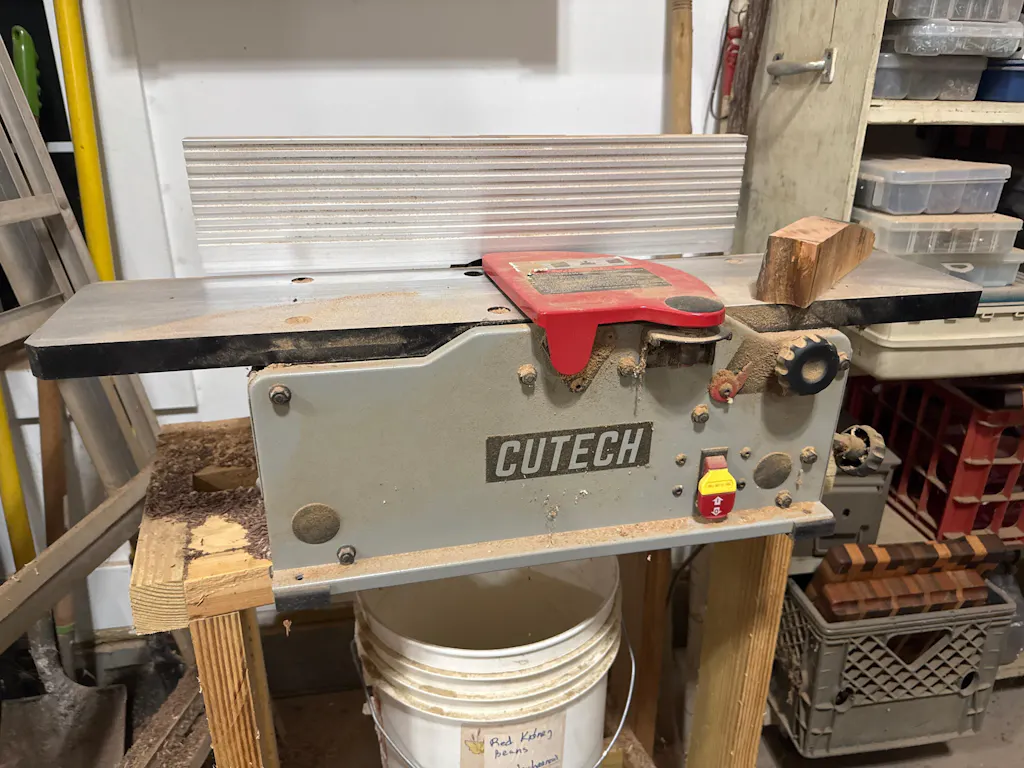

6 inch Cutech jointer

I have A 6 “ cutech jointer I purchased several years ago. I have used this as my sole jointer in making many tables, benches, mirrors, custom bunk beds and recently charcuterie boards. This jointer has always performed well. Only recently did I rotate the original carbide blades as one blade had two small grooves in the cutting edge. Other than needing a standby set of carbide blades this machine is amazing. Currently using to make two cherry nightstands a walnut coffee table and a double live edge walnut night stand. Certainly worth the investment and would buy again. Cheers Ki

customer service was awesome! my jointer was delivered faster than expected. thanks so much!

I gave up

My 6 inch jointer is 2 years old now and I didn’t even use it for the first few months and when I did was out of square and the tables a lined I tried to fix it I watch bunch videos but still can’t figure it out. I just want to throw it away and buy something else.
