8 inch Benchtop Jointer (Cast Iron Tables) - CUTECH 40180HI

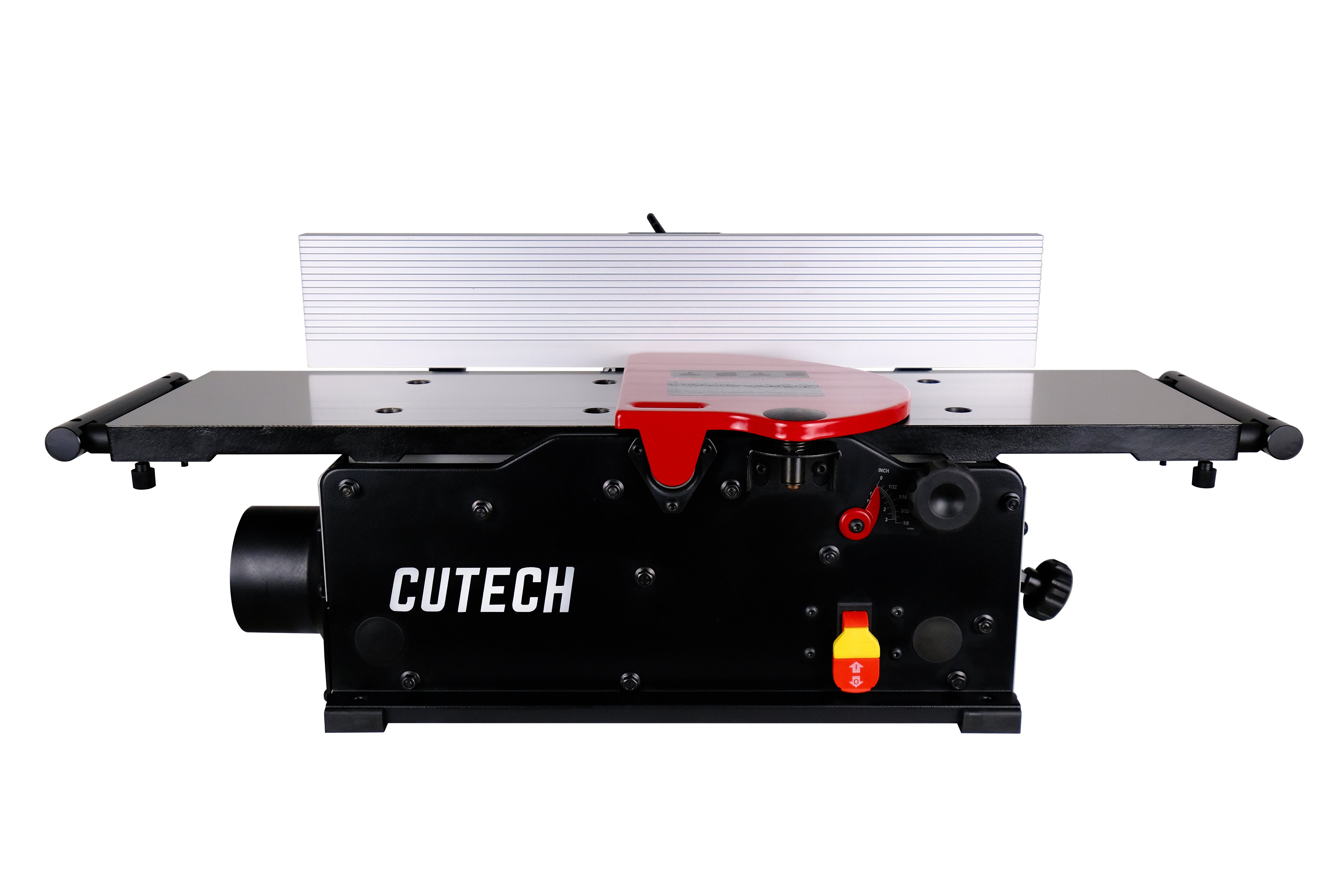

CUTECH 8” BENCHTOP JOINTER
The newly released 8" jointer with cast iron tables, longer fence, and fence supports. The much anticipated cast iron tables provide a total working length of 54". The new fence is 20% longer with the addition of fence support brackets. The spiral cutterhead comes standard with 16 indexable 2-sided inserts to create perfectly flat and square boards to start off any project the right way. From simple flatting, to correcting defects in boards to edge jointing, the 8" Cutech jointer is a valuable tool to deliver the precision cuts that woodworkers need to make their projects come to life.
FEATURES
- Spiral Cutterhead - Cutterhead with 6 rows that holds 16 staggered inserts for a smooth finish. The design of the cutterhead along with the use of in-house made inserts make cuts with the lowest amp draw compared to others.
- Two-sided Inserts - Two-sided inserts sit in perfect alignment to the spiral cutterhead. Non-cutting edge designed to prevent insert from skewing while planing. The precision is superior to 4-sided inserts.
- Adjustable 24" long aluminum Fence - Features quick stops at 90° and 135° for versatile cutting angles.
- Fence Enhancement Brackets - Fence enhancement brackets stabilize both ends of the fence for a flawless cut. (Patented in Taiwan.)
- Elevation Control - Say goodbye to table inconsistencies with the additional guide post. Parallel tables translate to straight cuts at any different depth.
- Additional Support Rod System - Additional support rod system maintaining a strong upright frame. Sustaining support for heavy-duty work pieces.
CUTECH Spiral Cutterhead
Cutterhead with 6 rows that holds 16 staggered inserts for a smooth finish.
The design of the cutterhead along with the use of in-house made inserts make cuts with the lowest amp draw compared to others.
Two-sided Inserts
Two-sided inserts sit in perfect alignment to the spiral cutterhead.
Non-cutting edge designed to prevent insert from skewing while planing.
The precision is superior to 4-sided inserts.

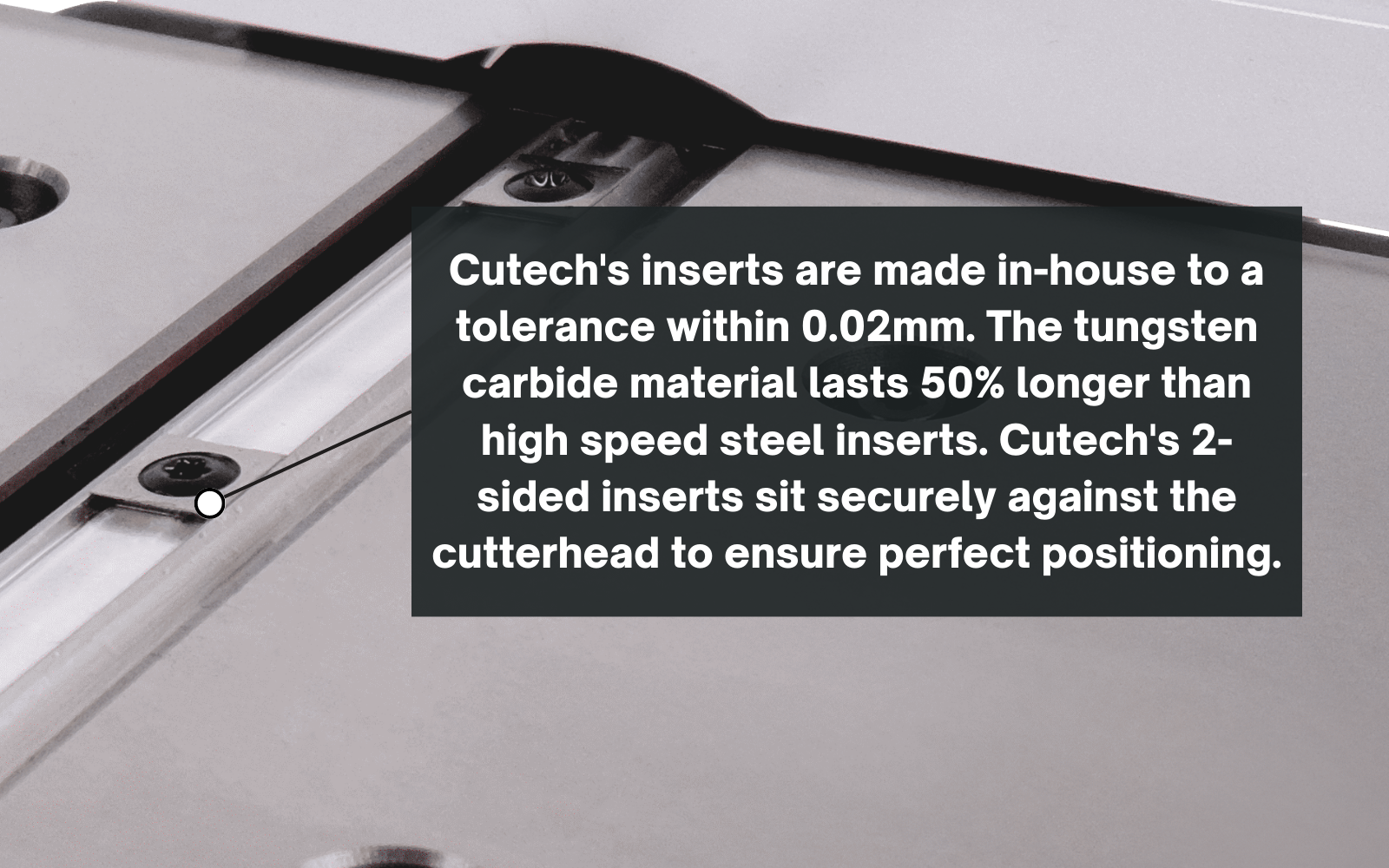

Tungsten Carbide Inserts
Our inserts are engineered in-house to a 0.0007" (0.02mm) tolerance. This sub-thousandth precision delivers a glass-smooth finish right off the cutterhead, eliminating line-tracking.
Built from high-grade Tungsten Carbide, these inserts outlast standard HSS blades by 50%, keeping your edge sharper for longer.

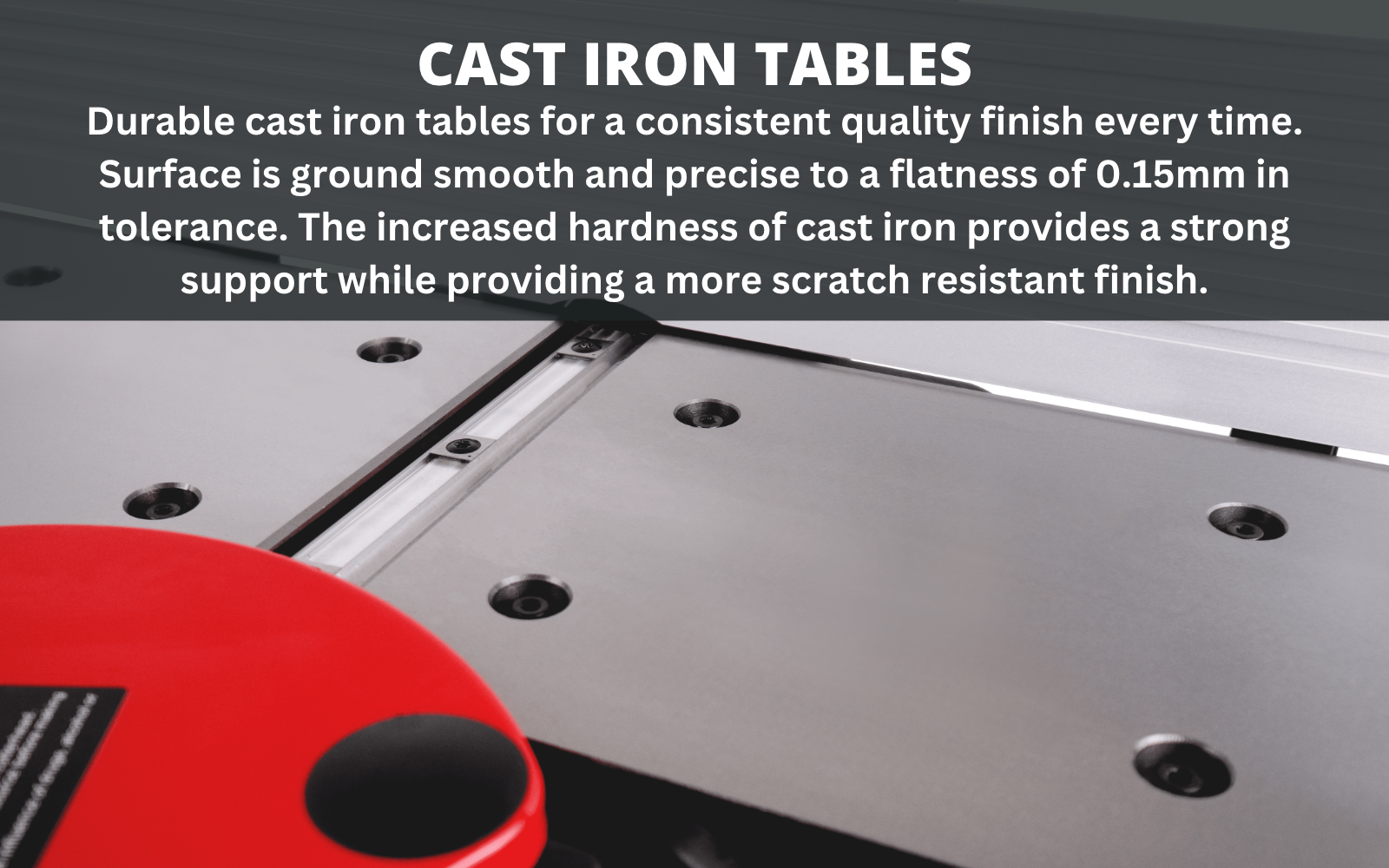

Cast Iron Tables
New cast iron tables for lasting durability and precision.
A consistent quality cut every time.

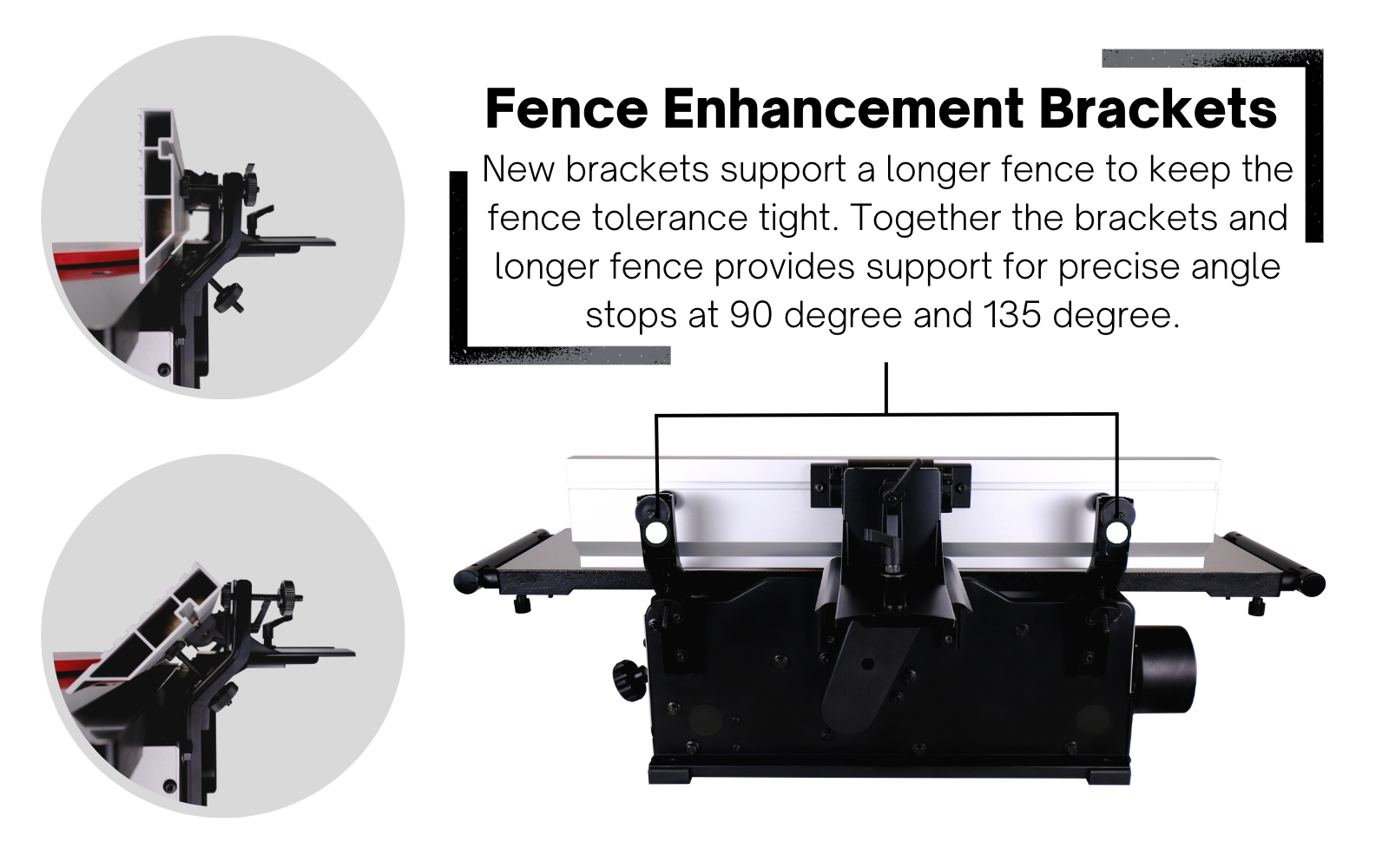

Fence Enhancement Brackets
Fence enhancement brackets stabilize both ends of the fence for a flawless cut.
Patented in Taiwan

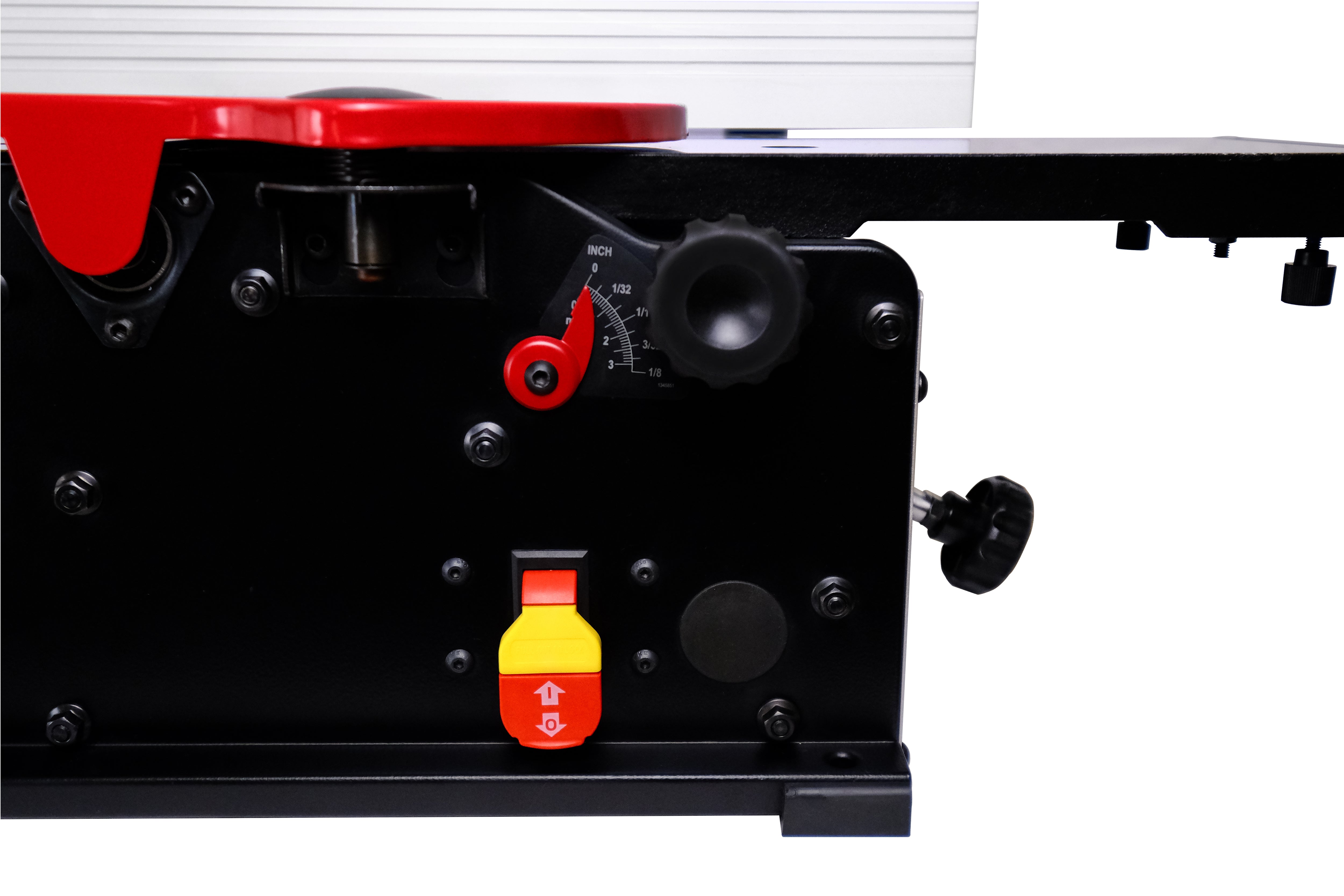

Depth of Cut Pointer
Clear and accurate scale and pointer for a precise measured cut every time.

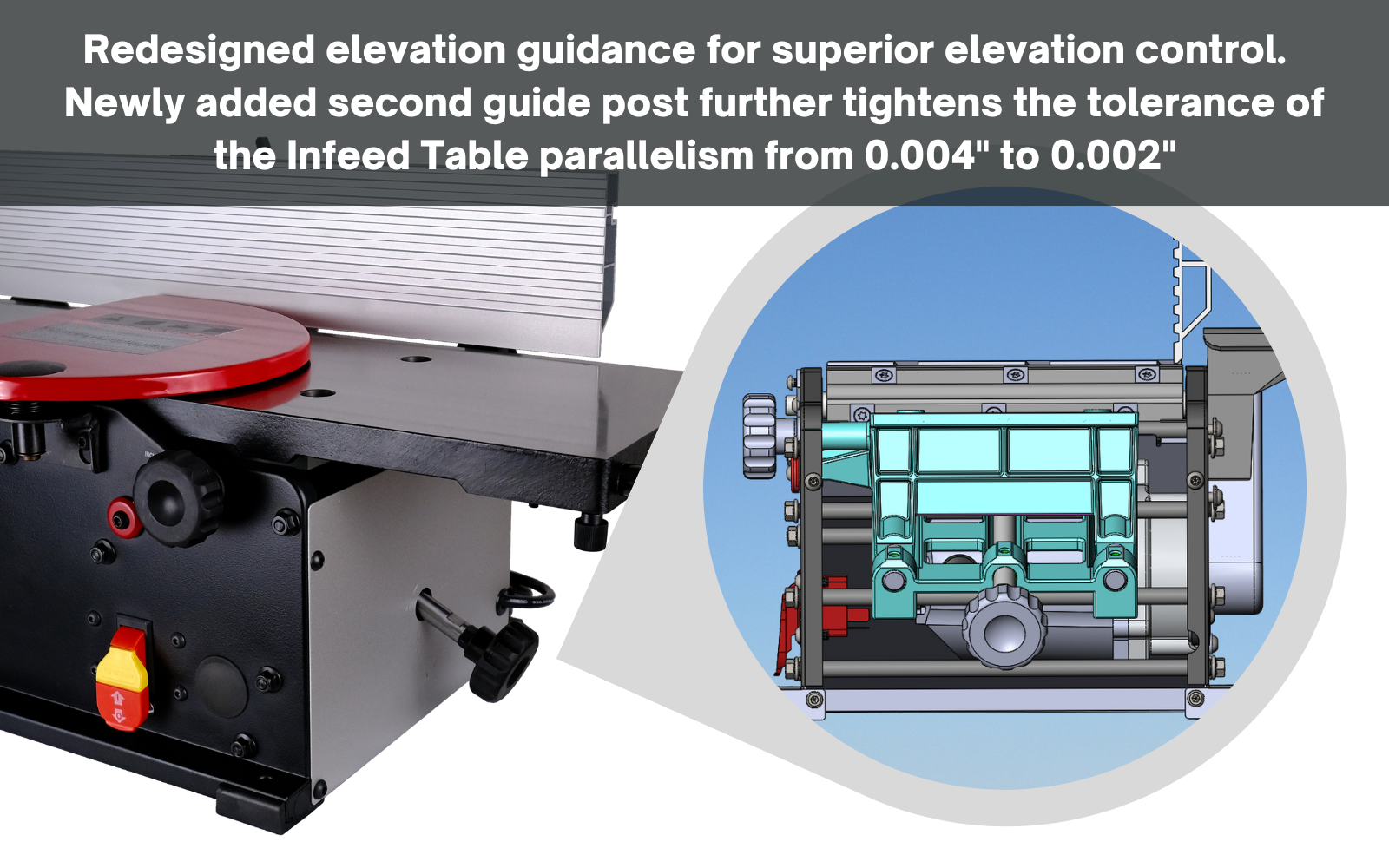

Elevation Control
Say goodbye to table inconsistencies with the additional guide post.
Parallel tables translate to straight cuts at any different depth.
Additional Support Rod System
Additional support rod system maintaining a strong upright frame.
Sustaining support for heavy-duty work pieces.
Dimensions
24" aluminum fence.

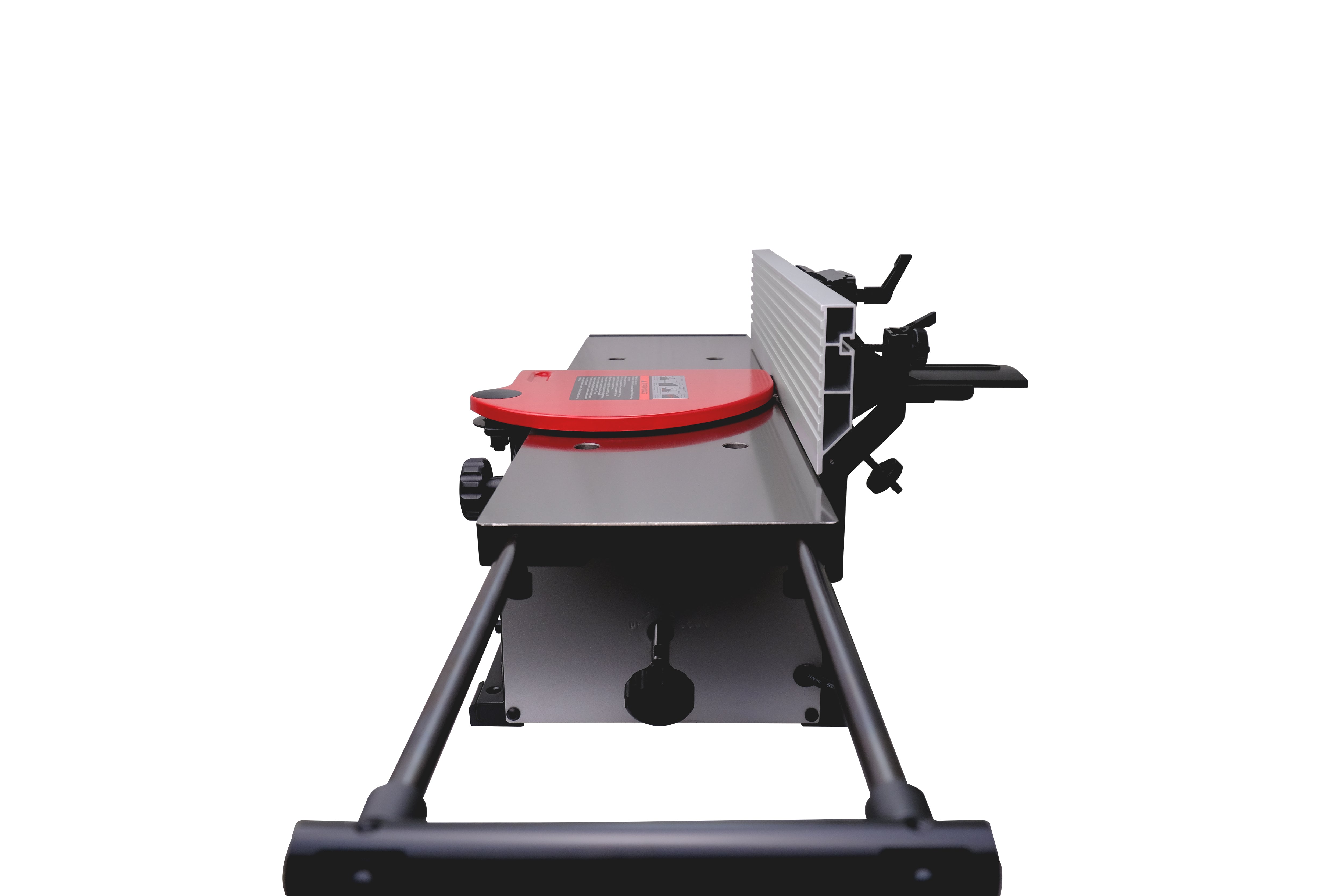

Retractable table extensions increase support when needed while maintaining a small footprint.
Adjustable Fence
Adjustable 24” fence with quick stops at 90° and 135°.

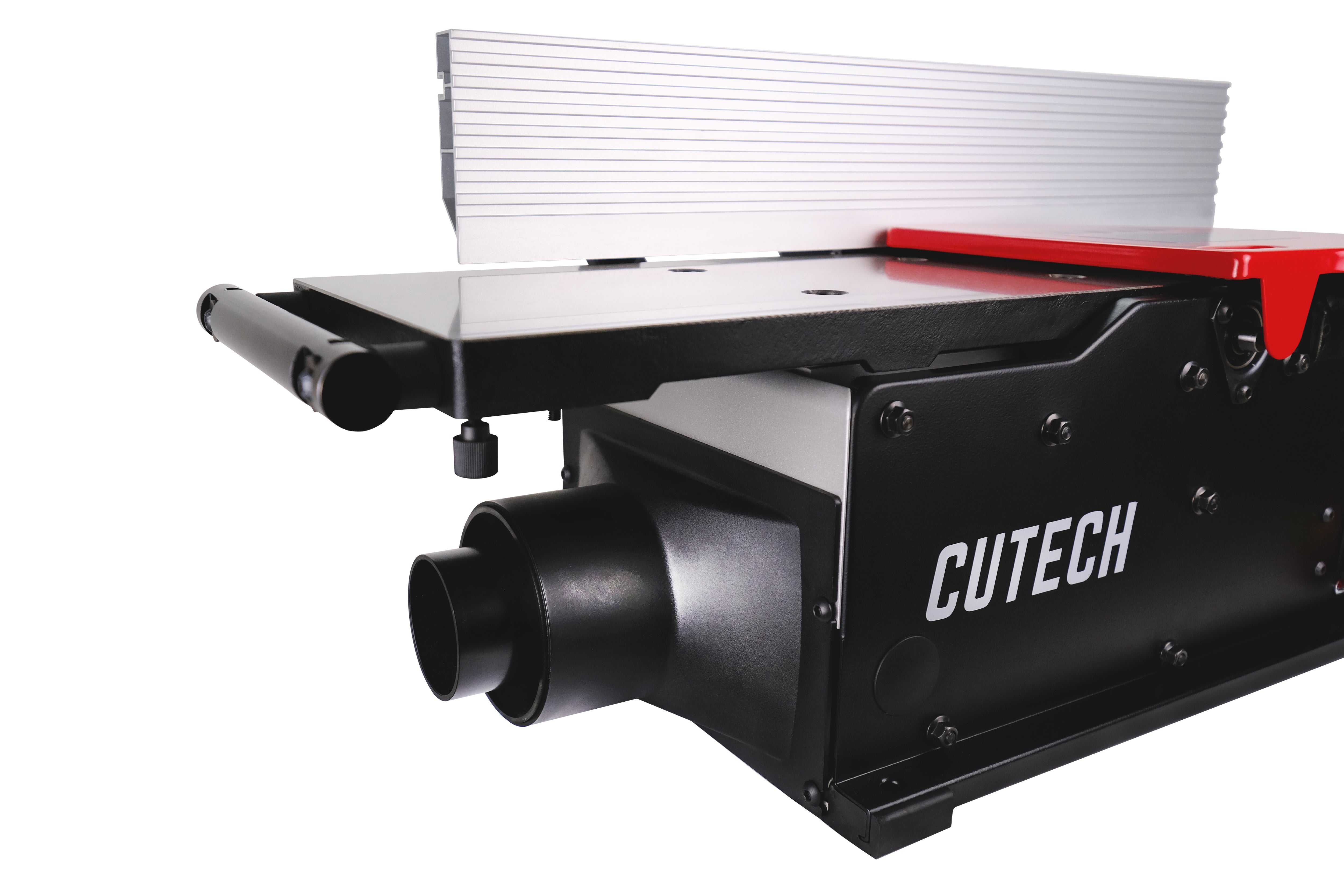

Dust Port
Large 4” diameter exhaust with optional 2-1/2” adapter.
Product Patents
LEVEL ADJUSTING DEVICE FOR WORKTABLE OF JOINTER/PLANER MACHINE
(US 8,851,462 C1)
FENCE ENHANCEMENT BRACKETS
(Patented In Taiwan)
Related article: What Does a Wood Jointer Do? 4 Tips to Choose the Best Benchtop Jointer
How to Use a Jointer: 4 Easy Steps to Perfect Wood & Pro Tips
8" CAST IRON JOINTER VIDEO
See the review as Paw Paw’s WorkShop delves into the features and capabilities of Cutech 8-inch jointer with cast iron table. From unboxing to assembly, discover the machine's detailed construction, adjustable fence, and safety features.
8 INCH JOINTER FAQS
Q1: Why is cast iron preferred for jointer tables?
Cast iron is favored because of its durability, stability, and ability to absorb vibrations. This ensures smoother operations and more accurate cuts.
Q2: How do I maintain a cast iron jointer table?
To prevent rust, it's essential to keep the table clean and dry. Applying a thin coat of paste wax or machine oil can help protect the surface. Regularly check for any debris or wood chips that might scratch the table.
Q3: How does the weight of a cast iron jointer affect its portability?
Due to their weight, cast iron jointers are less portable than lighter models. However, many professionals prefer the stability and performance benefits that weight provides.
Q4: Is an 8-inch jointer big enough?
An 8-inch jointer strikes a balance in functionality and it is the best long-term investment. While it's adequately sized for a majority of tasks, it remains manageable and not overly cumbersome. Its extended infeed and outfeed tables offer stability for bigger projects.
Motor
- Voltage: 120V
- Current: 10A
- Frequency: 60Hz
- Speed: 19000 ± 10% RPM
Cutterhead
- Type: Spiral
- Diameter: 2”
- Cutterhead Speed: 11000 RPM
- Blades: 16 Two-sided Tungsten Carbide Inserts
- Max Depth of Cut: ⅛"
- Max Cutting Width: 8”
Features
- Spiral Cutterhead
- Two-sided Inserts
- Extendable Tables
- Adjustable Fence
- Cast Iron Tables
- Redesigned Elevation Control
- Depth of Cut Pointer
- Fence Enhancement Brackets
- Additional Support Rod System
- Full Size Table Supports

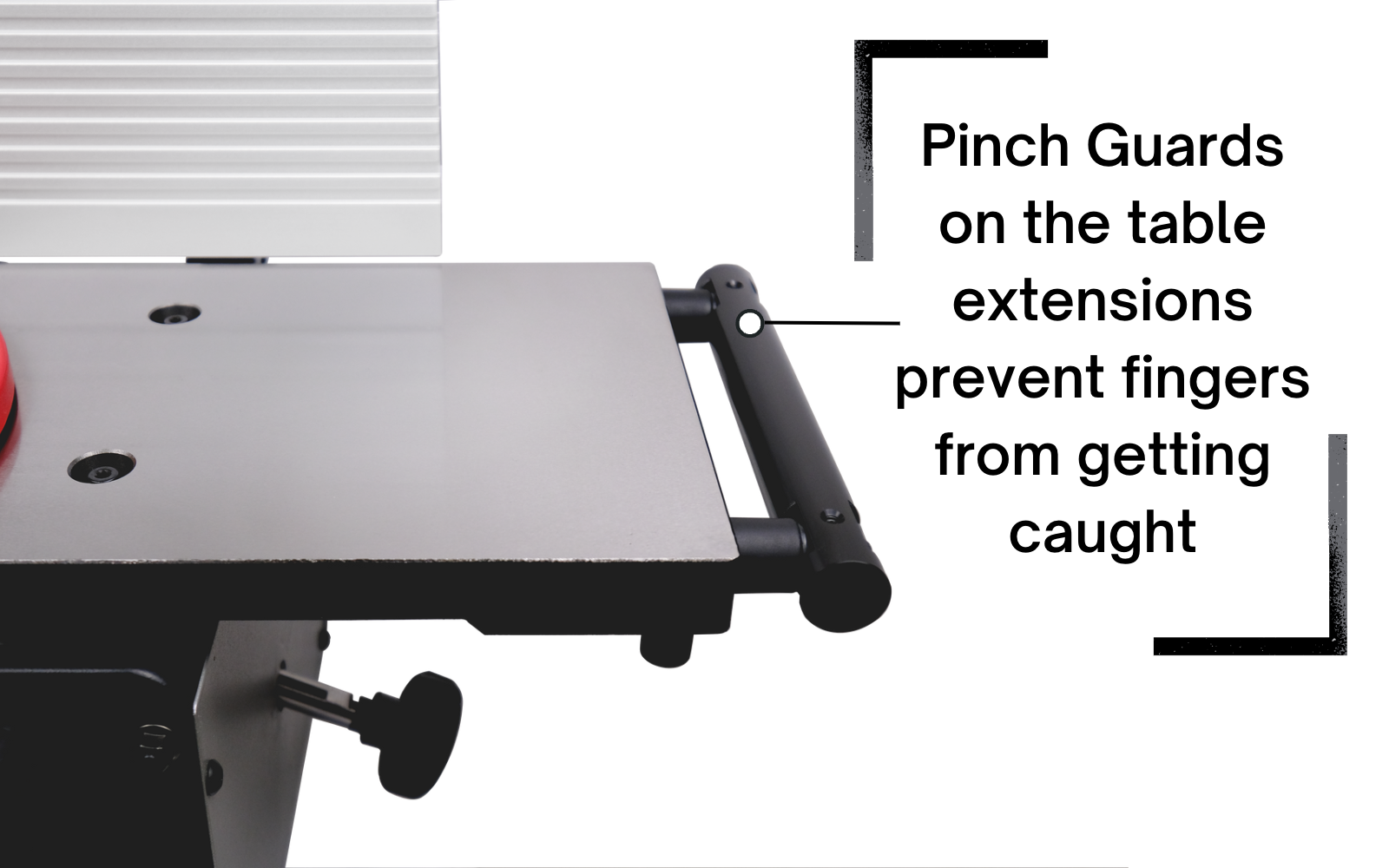

- Pinch Guards
- Updated Safety Guard
Dimensions
- Overall Size: 34" (Extendable to 54”) x 19¾” x 13¼”
- Tables: 34" (Extendable to 54”) x 8¼"
- Fence Size: 24" x 4⅜”
- Dust Port Diameter: 2½” & 4"
- Net Weight: 65.5 lb
